Describe the introduction

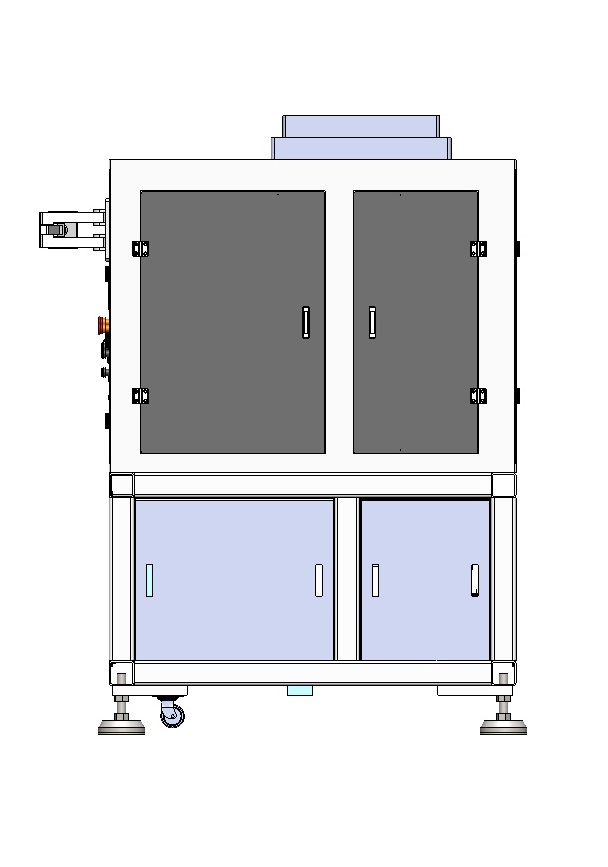

The MTF optical measurement system that integrates automatic loading and unloading is the MTF detection
all-in-one machine for full MTF testing Developed with the needs of automatic loading and unloading, automatic grading and warehousing, it integrates high-precision detection and full automatic angle Identification compensation and fully automatic multi-level sorting and warehousing functions are integrated, which improves maximum space usage and production efficiency at the same time It can also effectively reduce the demand for manpower, and is good for achieving streamlined production and improving production quality Helper.

peculiarity

l   Automatic operation, 1 person can correspond to 4 sets of equipment at the same time

l   Linear electric machine for quick handling, UPH> 600

l   High-precision visual recognition compensation system, placement accuracy ±0.02mm, angle accuracy ±2°

l   The mean difference in repeatability of MTF data of equipment feeding is <5, which is less than the average difference of repeatability of manual feeding 10

l   The incoming material tray of the product can be used directly, without the need for a turnover plate, reducing the cost of fixtures

l   The MTF detector is combined with the MTF loader and unloader to improve space utilization.

Technical specifications
